Description

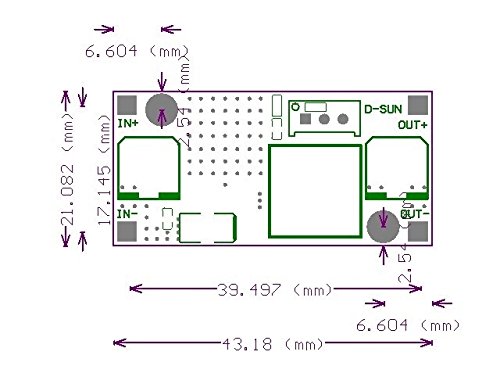

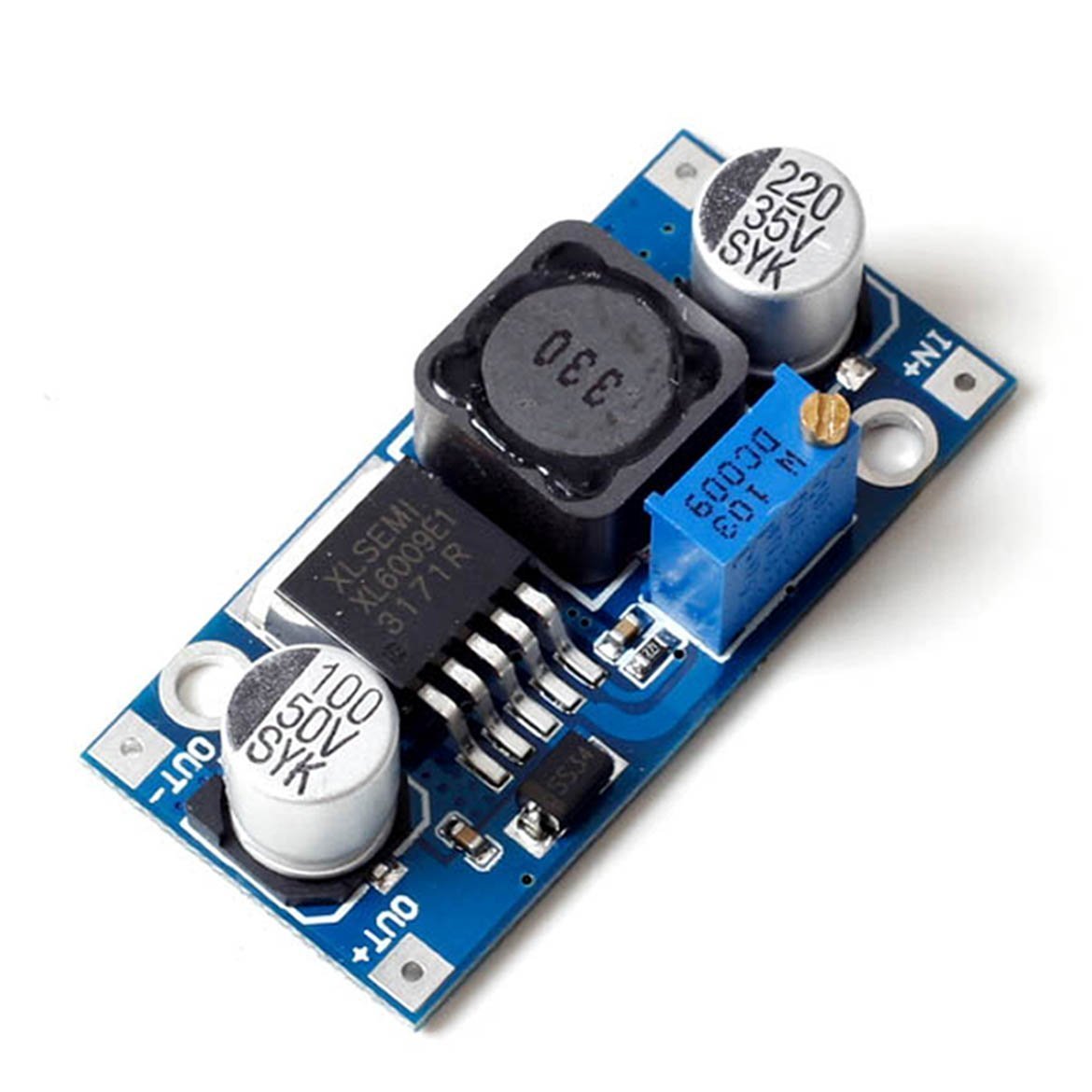

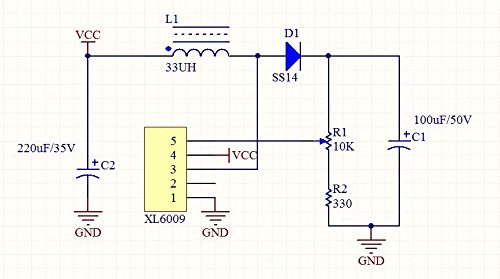

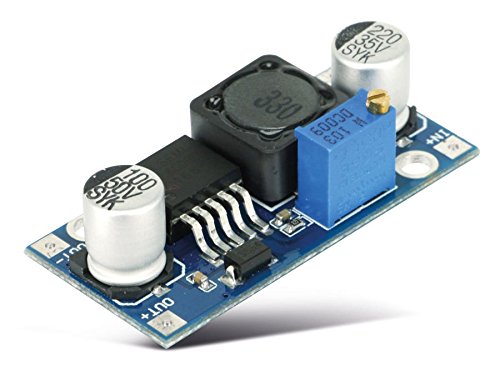

This module is a non-remoted step-up (spice up) voltage converter that includes adjustable output voltage and Prime Potency. Description: XTW6009 is a 4 a transfer present Prime-efficiency step-up (BOOST) module. The XL6009E1 module makes use of the second one technology of Prime frequency transfer era because the center chip, LM2577 efficiency a long way past the primary technology of era. XL6009 booster module price is decrease, efficiency is extra exceptional, LM2577 module will probably be eradicated. If the Enter or output present is greater than 2A (want to plug warmth sink), if the output energy is upper than 15 W, recommend so as to add the warmth sink. Please don’t use without heatsink for steady use. Observe: The output voltage should be upper than the Enter voltage. IN-IN + Enter sure Enter bad, sure output OUT + OUT-output bad. Take a look at comparability pattern reference, Enter 3V output 12V 0.4A 4.8W Enter 5V output 12V 0.8A 9.6W Enter 7.4V output 12V 1.5A 18W Enter 12V output 15V 2A 30W Enter 12V output 16V 2A 32W Enter 12V output 18V 1.6A 28.8W Enter 12V output 19V 1.5A 28.5W Enter 12V output 24V 1 A 24W Vin x Iin x Potency = Vout x Iout. Vin: Enter voltage. Iin: Enter present. Vout: Output voltage. Iout: Output present.
Low extremely extensive Enter voltage 3 v ~ 32 v, the most efficient is 5 ~ 32 v running voltage vary
Low extremely extensive output voltage 5 v ~ 35 v
Integrated 4 a environment friendly Mosfet transfer tube, make Potency as much as 94 % (LM2577 present handiest 3 a)
Prime switching frequency, 400 KHZ, can use the small capability of the clear out capacitor can succeed in superb impact, ripple smaller and smaller
Running Temperature: -forty ~+eighty five
